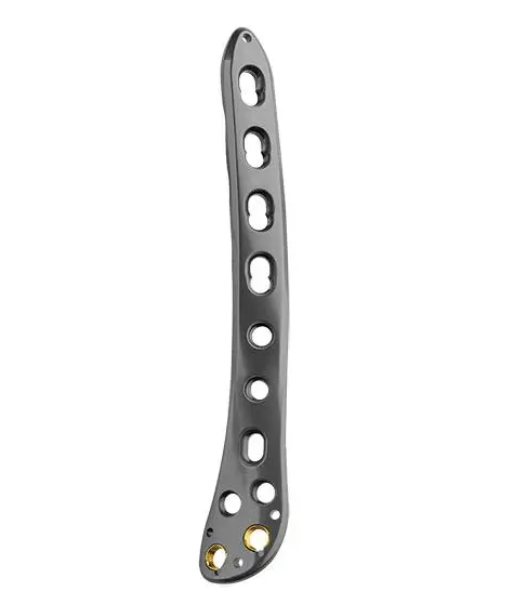

Multi-Axial Distal Lateral Tibia Locking Plate-5.0 System
Features of the Multi-axial Distal Lateral Tibia Plateau Locking Plate:
1. The proximal half of the plate has a multi-axial ring design that can be adjusted in angle to suit the needs of the clinic;
2. Premium titanium and cutting-edge processing techniques;
3. A low-profile design lessens irritability to soft tissues;
4. Anodized on the surface; 5. Anatomical form design;
6. Combi-hole offers the option of both cortical and locking screws;
Suitability for middle and lower tibia is shown by the orthopedic implant of a multi-axial distal lateral tibia plateau locking plate.
Used in conjunction with a surgical instrument set from the 5.0 series for Φ5.0 locking screws, Φ4.5 cortical screws, and Φ6.5 cancellous screws.
Multi-axial Distal Lateral Tibia Plateau Locking Plate Specification
|
Order code |
Specification |
|
|
10.14.34.05101000 |
Left 5 Holes |
121mm |
|
10.14.34.05201000 |
Right 5 Holes |
121mm |
|
*10.14.34.07101000 |
Left 7 Holes |
157mm |
|
10.14.34.07201000 |
Right 7 Holes |
157mm |
|
10.14.34.09101000 |
Left 9 Holes |
193mm |
|
10.14.34.09201000 |
Right 9 Holes |
193mm |
|
10.14.34.11101000 |
Left 11 Holes |
229mm |
|
10.14.34.11201000 |
Right 11 Holes |
229mm |

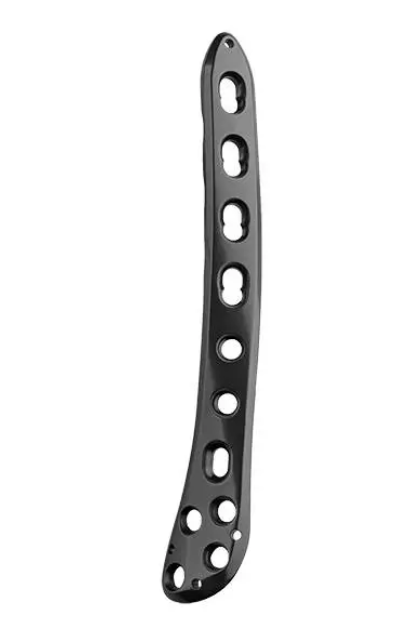

Distal Lateral Tibia Plateau Locking Plate Features:
1. Anatomical shape design;
2. Low profile design reduces irritation to sensitive tissues;
3. Surface anodized;
4. Combi-hole offers the option of both cortical and locking screws;
Indication: The middle and lower tibia are good candidates for the Distal Lateral Tibia Plateau Locking Plate surgical implant.
utilized in conjunction with a medical instrument set from the 5.0 series for Φ5.0 locking screws, Φ4.5 cortical screws, and Φ6.5 cancellous screws.
Distal Lateral Tibia Plateau Locking Plate Specification
|
Order code |
Specification |
|
|
10.14.33.05101000 |
Left 5 Holes |
121mm |
|
10.14.33.05201000 |
Right 5 Holes |
121mm |
|
*10.14.33.07101000 |
Left 7 Holes |
157mm |
|
10.14.33.07201000 |
Right 7 Holes |
157mm |
|
10.14.33.09101000 |
Left 9 Holes |
193mm |
|
10.14.33.09201000 |
Right 9 Holes |
193mm |
|
10.14.33.11101000 |
Left 11 Holes |
229mm |
|
10.14.33.11201000 |
Right 11 Holes |
229mm |
