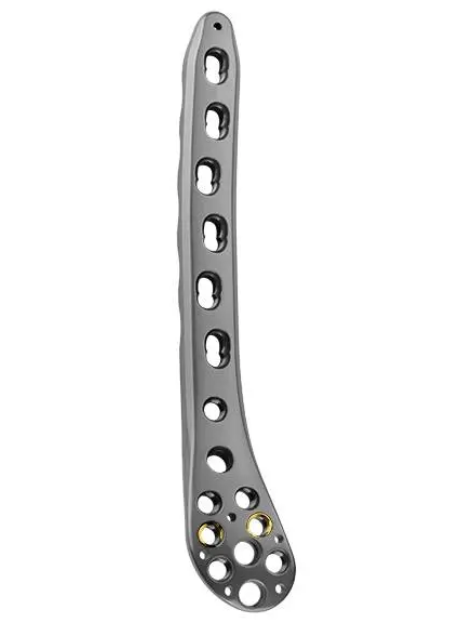

Multi-Axial Distal Femur Locking Plate
Features
1. The proximal part's multi-axial ring design allows for an adjustable angel to satisfy clinic requirements;
2. Titanium material and cutting-edge production techniques;
3. A low-profile design that lessens discomfort to delicate tissues;
4. Anodized surface;
5. Anatomical form design;
6. Combi-hole with the option of both locking and cortical screws;
Indication: Distal femur fractures are appropriate candidates for orthopedic implants with a multi-axial distal femur locking plate.
Fits with 5.0 series orthopedic instrument set; used for Φ5.0 locking screw, Φ4.5 cortical screw, and Φ6.5 cancellous screw.
Specification
|
Order code |
Specification |
|
|
10.14.27.05102000 |
Left 5 Holes |
153mm |
|
10.14.27.05202000 |
Right 5 Holes |
153mm |
|
*10.14.27.07102000 |
Left 7 Holes |
189mm |
|
10.14.27.07202000 |
Right 7 Holes |
189mm |
|
10.14.27.09102000 |
Left 9 Holes |
225mm |
|
10.14.27.09202000 |
Right 9 Holes |
225mm |
|
10.14.27.11102000 |
Left 11 Holes |
261mm |
|
10.14.27.11202000 |
Right 11 Holes |
261mm |

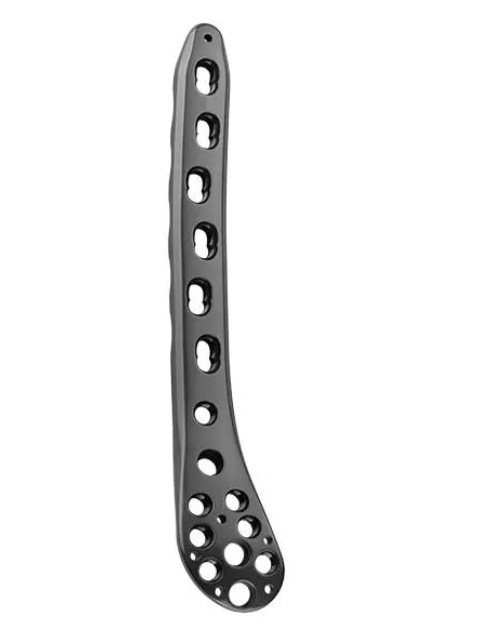

Distal Femur Locking Plate Features:
1. Surface anodized;
2. Low profile design helps decrease soft tissue irritation;
3. Titanium material and sophisticated processing technologies;
4. Designing anatomical shapes;
5. Combi-hole offers the option of both cortical and locking screws;
Indication: Distal femur fractures can be treated using medical implants for the distal femur locking plate.
utilized in conjunction with a medical instrument set from the 5.0 series for Φ5.0 locking screws, Φ4.5 cortical screws, and Φ6.5 cancellous screws.
Distal Femur Locking Plate Specification
|
Order code |
Specification |
|
|
10.14.26.05102400 |
Left 5 Holes |
153mm |
|
10.14.26.05202400 |
Right 5 Holes |
153mm |
|
*10.14.26.07102400 |
Left 7 Holes |
189mm |
|
10.14.26.07202400 |
Right 7 Holes |
189mm |
|
10.14.26.09102400 |
Left 9 Holes |
225mm |
|
10.14.26.09202400 |
Right 9 Holes |
225mm |
|
10.14.26.11102400 |
Left 11 Holes |
261mm |
|
10.14.26.11202400 |
Right 11 Holes |
261mm |
