Locking Maxillofacial Micro Straight Plate Locking Maxillofacial Micro Straight Plate

$0.00
+
-
Wishlist

To add this product to your wish list you must Sign In or Create an account

Application: Frontal portion, nasal part, pars orbitalis, pars zygomatica, maxilla region, juvenile craniofacial bone are treated surgically for maxillofacial trauma fractures.

Composition: medical-grade titanium
Measurement of thickness: 0.6 mm

Product specification

Item No.

Specification

10.01.02.06011000

6 holes

24mm

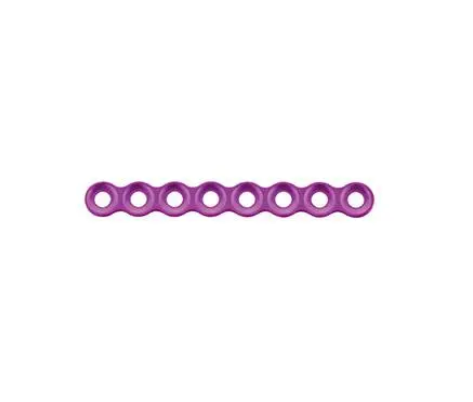

10.01.02.08011000

8 holes

32mm

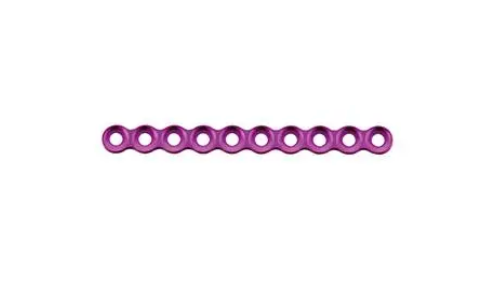

10.01.02.10011000

10 holes

40mm

10.01.02.12011000

12 holes

48mm

10.01.02.14011000

14 holes

56mm

Features & Benefits:

detail (3)
• Reversible usage of the locking maxillofacial micro and mini plate
• Squeeze locking technology is the locking mechanism.
• One hole can choose between two types of screws: locking and non-locking, both of which increase the likelihood of plates and screws colliding freely and better and more comprehensively meet clinical indication requirements.
• The basic material for bone plates is specially customized German ZAPP pure titanium, which has a more consistent grain size distribution and superior biocompatibility.don't interfere with MRI or CT scans
• Various series goods with different colors, convenient for clinician operation (use anodizing technology, variable thickness of anodized layer will reflect different color); • smooth edges on bone plates, reducing stimulation to soft tissue.
Complementary screw:
Self-drilling screw with a φ1.5 mm
φ1.5mm screw with self-tapping
φ1.5mm lock fastener
The matching instrument is a cross head screw driver (SW0.5*2.8*95mm straight quick coupling handle) and a medical drill bit (φ1.1*8.5*48mm).

Application: Frontal portion, nasal part, pars orbitalis, pars zygomatica, maxilla region, juvenile craniofacial bone are treated surgically for maxillofacial trauma fractures.

Composition: medical-grade titanium
Measurement of thickness: 0.6 mm

Product specification

Item No.

Specification

10.01.02.06011000

6 holes

24mm

10.01.02.08011000

8 holes

32mm

10.01.02.10011000

10 holes

40mm

10.01.02.12011000

12 holes

48mm

10.01.02.14011000

14 holes

56mm

Features & Benefits:

detail (3)
• Reversible usage of the locking maxillofacial micro and mini plate
• Squeeze locking technology is the locking mechanism.
• One hole can choose between two types of screws: locking and non-locking, both of which increase the likelihood of plates and screws colliding freely and better and more comprehensively meet clinical indication requirements.
• The basic material for bone plates is specially customized German ZAPP pure titanium, which has a more consistent grain size distribution and superior biocompatibility.don't interfere with MRI or CT scans
• Various series goods with different colors, convenient for clinician operation (use anodizing technology, variable thickness of anodized layer will reflect different color); • smooth edges on bone plates, reducing stimulation to soft tissue.
Complementary screw:
Self-drilling screw with a φ1.5 mm
φ1.5mm screw with self-tapping
φ1.5mm lock fastener
The matching instrument is a cross head screw driver (SW0.5*2.8*95mm straight quick coupling handle) and a medical drill bit (φ1.1*8.5*48mm).
