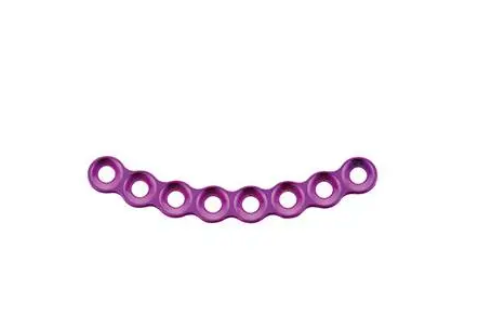

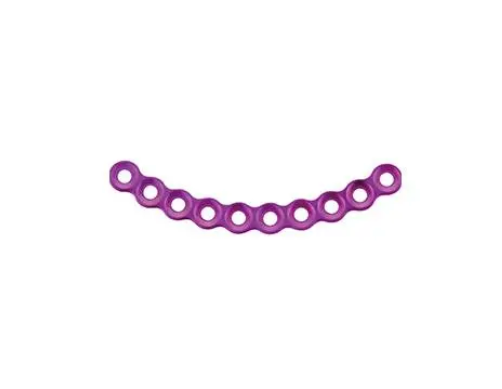

Locking Maxillofacial Micro Arc Plate
Application: Frontal portion, nasal part, pars orbitalis, pars zygomatica, maxilla region, juvenile craniofacial bone are treated surgically for maxillofacial trauma fractures.
Composition: medical-grade titanium
Measurement of thickness: 0.6 mm
Product specification
|
Item No. |
Specification |
|
|
10.01.02.06013000 |
6 holes |
24mm |
|
10.01.02.08013000 |
8 holes |
31mm |
|
10.01.02.10013000 |
10 holes |
38mm |
|
10.01.02.12013000 |
12 holes |
44mm |
|
10.01.02.14013000 |
14 holes |
49mm |
Features & Benefits:
• Reversible use is possible with the locking maxillofacial micro and small plate.
• One hole selects two types of screws: locking and non-locking, all of which are accessible to maximize the likelihood of plates and screws colliding freely and to better and more fully meet clinical indication requirements.
• Locking mechanism: squeeze locking technology
• The concave plate hole reduces irritation from soft tissues by allowing the plate and screw to merge more intimately with lower incisures.
• The smooth edge of the bone plate lessens stimulation of the soft tissue.
• Products from different series that are color-coded for easier handling by clinicians (adopting anodizing technique, different thickness of anodized layer will reflect different color).
Ά1.5mm self-drilling screw is the matching screw.
φ1.5mm screw with self-tapping
φ1.5mm lock fastener
Complementing tool:
• One hole selects two types of screws: locking and non-locking, all of which are accessible to maximize the likelihood of plates and screws colliding freely and to better and more fully meet clinical indication requirements.
• Locking mechanism: squeeze locking technology
• The concave plate hole reduces irritation from soft tissues by allowing the plate and screw to merge more intimately with lower incisures.
• The smooth edge of the bone plate lessens stimulation of the soft tissue.
• Products from different series that are color-coded for easier handling by clinicians (adopting anodizing technique, different thickness of anodized layer will reflect different color).
Ά1.5mm self-drilling screw is the matching screw.
φ1.5mm screw with self-tapping
φ1.5mm lock fastener
Complementing tool:
A medical drill bit Cross head screwdriver: SW0.5*2.8*95mm straight quick coupling handle; φ1.1*8.5*48mm
