Light Source & Video Recording System

Name: Light Source & Video Recording System
Brand: IMC Supplier - T
Availability: InStock

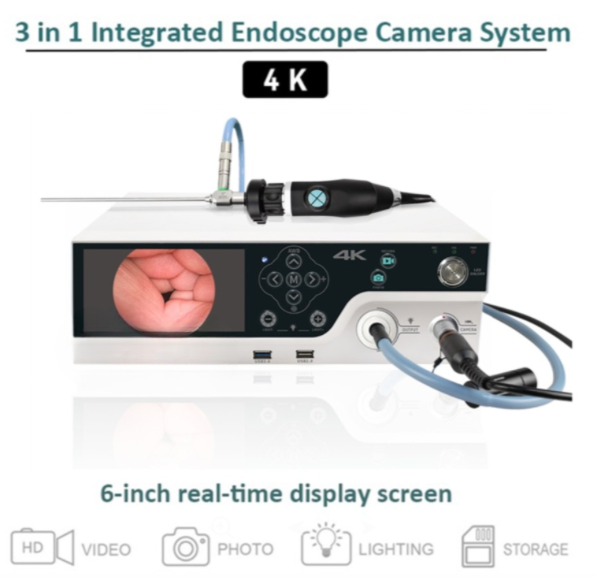

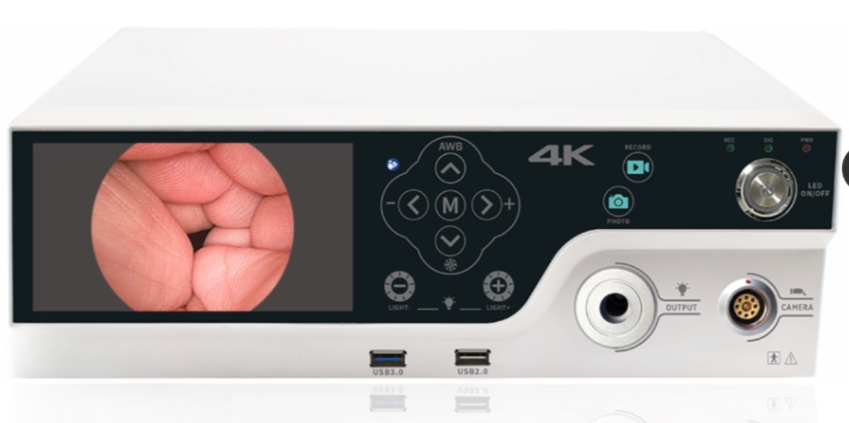

The light source, light guide, optical adapter (optical interface), recorder board, endoscopy control body, and 6-inch screen make up the endoscope recorder system.

Features of the TV-LSD101A Video Recorder:

● A fully functional 4K video recording device featuring a 6-inch display screen and an integrated light source
● Two integrated USB full HD storage
● Multiple signal output for different kinds of external monitors
● Hot keys for freezing, zooming, and white balancing
● Hot key for picture and video mode
● Brightness memory function: the LED light source's brightness is saved during shutdown and restored upon restart

System parameters	Input Interface	SDI 4K 60FPS
	Output interface	HDMI/SDI/CVBS
	Keypad Control	Control the mainboard menu and shortcut keys through RX/TX
	USB Disk	U disk USB2.0/USB3.0 (up to 32GB) for video and photo recording
	Hot key function	Freeze/White Balance/Video/Photo/Digital Zoom
	Power	AC110V-240V
	Operating temperature	-10℃ to 60℃
	Size	L336W330H116mm
	Net Weight	4.3KG
	Effective Pixels	3864(H) × 2192(V)Approx. 8.46M pixels
	Resolution	4K 60fps
	Min-illumination	Color:DSS:0.017LUX BW DSS: 0.008 LUX
	FREEZE Freeze	The picture freezes
	AWB	Hot-key White Balance
	D-ZOOM	1-8X
	Color	RED/GREEN/YELLOW/BLUE
	Brightness	1-30 steps
	Sharpness	1-40 steps
	Lens Mode	ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/CustomOS
	OSD Language	Chinese, English, Japanese, Korean, Russian, Arabic and other languages
	Operating temperature	-30°C to 70°C
	Power(Max.)	DC12V ±10%<3W
	Operating Current	250mA±10mA
Light source parameters	Light Type	LED
	Rated Power	60W
	Illuminance	400W LUX
	Color temperature	5800-6500K
	Brightness Adjustment	Support
	Light Emitting Area (mm²)	3.8
