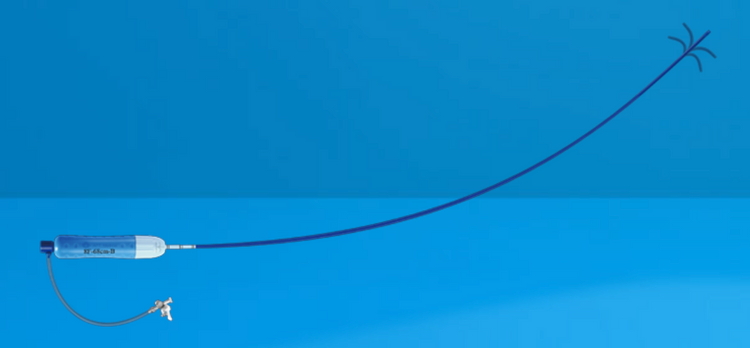

Steerable Guiding Sheath

Steerable Guiding Sheath

Enhance procedural efficiency with a steerable sheath tip designed for precision and control, enabling access to hard-to-reach areas of the heart.

Key Aspects

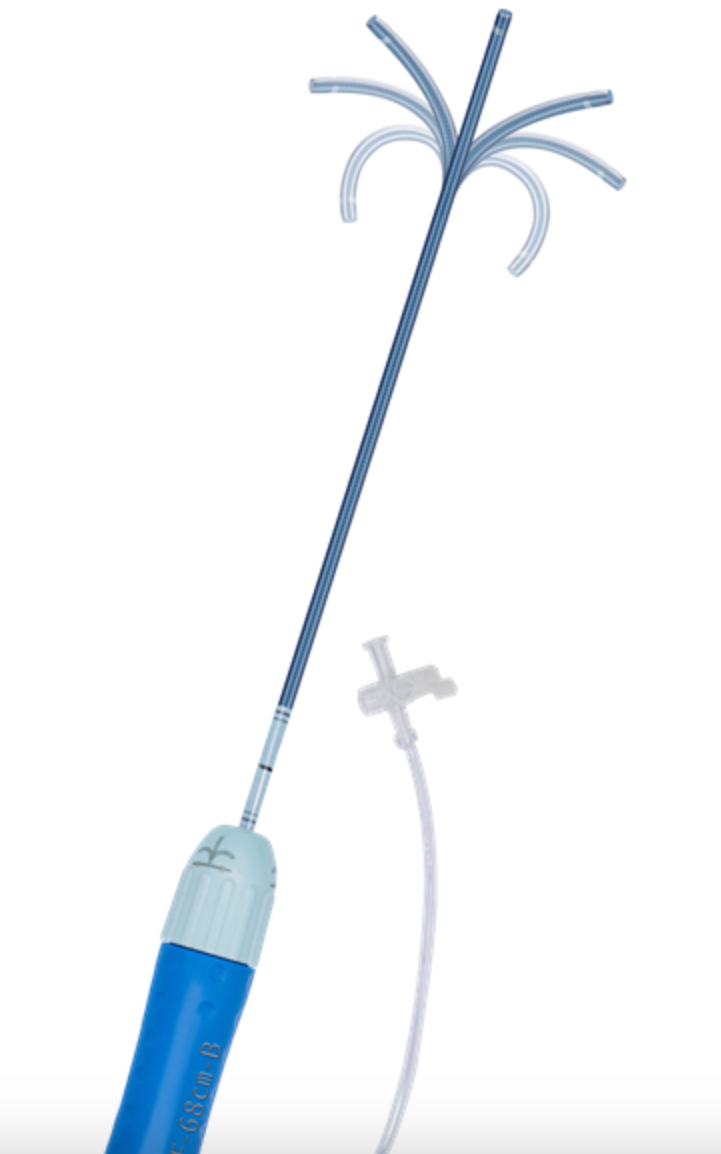

• Bi-directional steering up to 180° with a soft, atraumatic tip.

• Precise catheter positioning for diverse anatomical structures.

• High radiopacity for easy localization under imaging.

• Ergonomic handle for comfortable operation.

Specifications

• French sizes: 6F, 8F, 8.5F, 10F, 12F

• Curves: A (26 mm), B (39 mm), D (52 mm)

• Lengths (total/working): 96/82 cm, 82/68 cm, or 97/82 cm

• Side hole options: none or 2 holes

• Compatible guidewires:

  • 0.038” × 180 cm × J Tip

  • 0.032” × 180 cm × J Tip

• Note: 68 cm working length versions are compatible with the 89 cm transseptal needle
