Orthognathic 0.8 L Plate 6 Holes

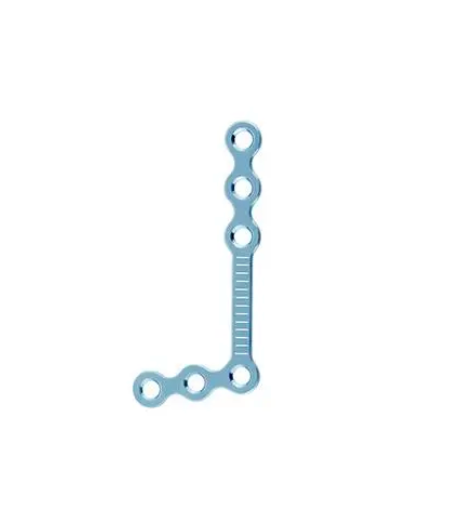

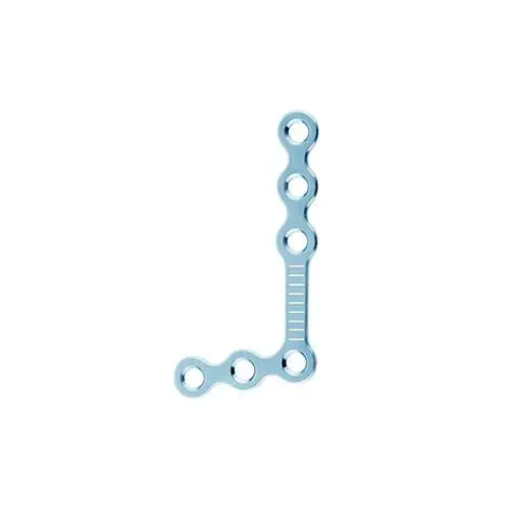

Orthognathic 0.8 mm L-Plate — 6-Hole Design
Material: Medical-grade titanium
Plate Thickness: 0.8 mm
Size Variants (Overall Length):
-
Small – approx. 28 mm
-
Medium – approx. 32 mm
-
Large – approx. 36 mm (Note: Item number repeated — confirm if correct)
Application
Designed for orthognathic surgery (jaw repositioning), offering stable fixation in procedures involving the maxilla or mandible.
Key Features & Benefits
-
Line Etching for Precision: 1 mm markings on the connecting rod section assist with accurate intraoperative bending and trimming.
-
Color Anodised by Size: Facilitates quick visual identification on the surgical field.
-
Low-Profile Construction: 0.8 mm thickness minimizes soft-tissue irritation while maintaining mechanical support.
-
Symmetrical Design: Reversible L-shape allows flexible left/right usage.
-
Smooth Contours: Edges are polished to reduce the risk of soft tissue damage.
Compatible Screws
-
Ø2.0 mm self-drilling screws
-
Ø2.0 mm self-tapping screws
Required Instruments
-
Cross-head screwdriver: SW 0.5 × 2.8 × 95 mm, straight quick-coupling handle
-
Medical drill bit: Ø1.6 × 12 × 48 mm
