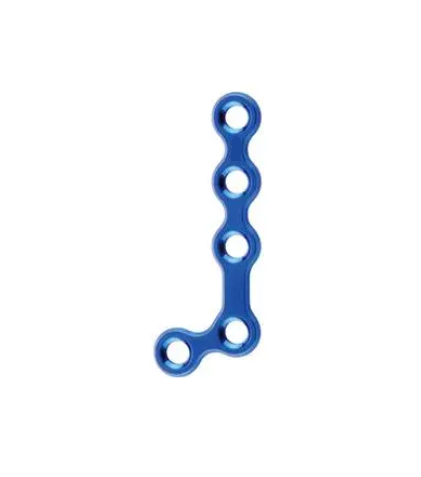

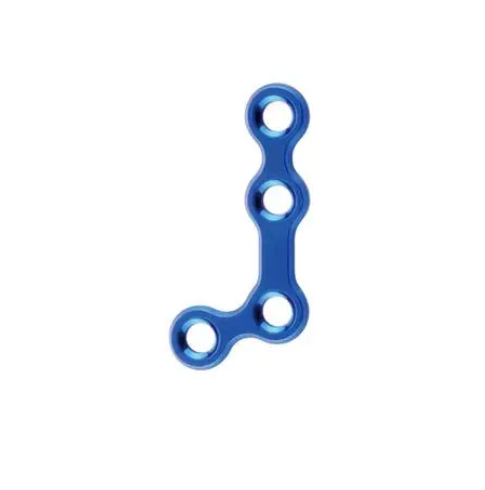

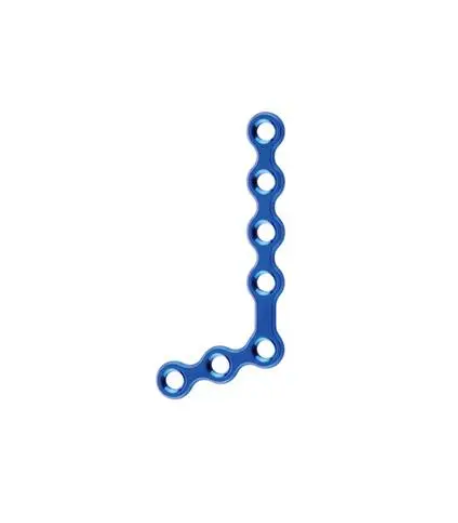

Maxillofacial Trauma Mini 110° L Plate

Maxillofacial Trauma Mini 110° L Plate

Application:
Developed for maxillofacial trauma fracture surgical treatment, this plate is suitable for the mandible (simple and stable trauma), maxilla region, pars orbitalis, and pars zygomatica.

Material & Dimensions

• Material: Medical-grade titanium (German ZAPP)

• Plate Thickness: 1.0 mm

• Configuration Options:

  • 4 holes – 19 mm length

  • 5 holes – 25 mm length

  • 7 holes – 31 mm length

  • Available in left and right versions

Features & Benefits

• Enhanced Biocompatibility: Made from high-grade German ZAPP titanium with uniform grain structure for superior biological compatibility

• Imaging Safe: Does not interfere with MRI or CT imaging

• Concave Screw Holes: Allows screws to sit flush, minimizing soft tissue irritation

• Color Coding by Series: Anodizing technique used to differentiate plate series by color, simplifying intraoperative handling

Compatible Screws

• Φ2.0 mm self-drilling screw

• Φ2.0 mm self-tapping screw

Matching Instruments

• Cross-head screwdriver: SW0.5 × 2.8 × 95 mm (straight quick coupling handle)

• Driver tip: φ1.6 × 12 × 48 mm

• Medical drill bit
