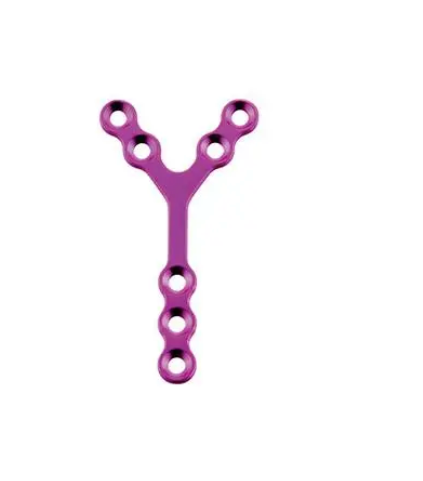

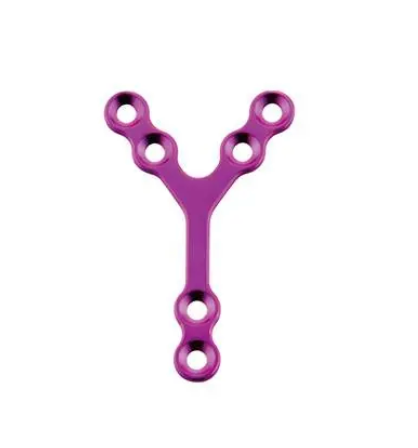

Maxillofacial Trauma Micro Y Plate

Maxillofacial Trauma Micro Y Plate

Application:
Specifically designed for the surgical treatment of maxillofacial trauma fractures. Ideal for use in the frontal portion, nasal region, pars orbitalis, pars zygomatica, maxilla, and juvenile craniofacial bones.

Material & Dimensions

• Material: Medical-grade titanium (German ZAPP)

• Plate Thickness: 0.6 mm

• Hole Options: Available in configurations with 6 or 7 holes, measuring 24 mm and 28 mm in length respectively

Features & Benefits

• Superior Titanium Quality: Made from specially customized German ZAPP pure titanium, known for its consistent grain size and excellent biocompatibility

• Imaging Compatibility: Fully compatible with MRI and CT scans—no interference

• Anodized Surface: Enhances surface hardness and wear resistance through anodizing treatment

• Lightweight & Low-Profile: Designed to reduce patient discomfort and minimize soft tissue irritation

Compatible Screws

• Φ1.5 mm self-drilling screw

• Φ1.5 mm self-tapping screw

Matching Instruments

• Cross-head screwdriver: SW0.5 × 2.8 × 95 mm (straight quick coupling handle)

• Medical drill bit: φ1.1 × 8.5 × 48 mm
