Maxillofacial Trauma Micro T Plate

Maxillofacial Trauma Micro T Plate

Application:
Designed for surgical treatment of maxillofacial trauma fractures, specifically in the frontal portion, nasal area, pars orbitalis, pars zygomatica, maxilla, and juvenile craniofacial bone.

Material & Dimensions

• Material: Medical-grade titanium (German ZAPP)

• Plate Thickness: 0.6 mm

• Available Configurations:

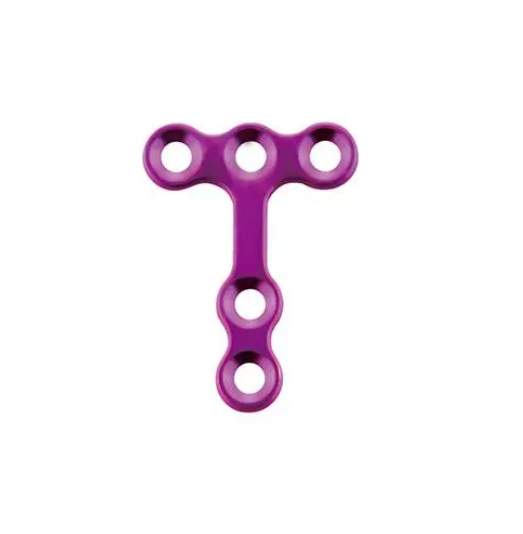

  • 5 holes – 16 mm

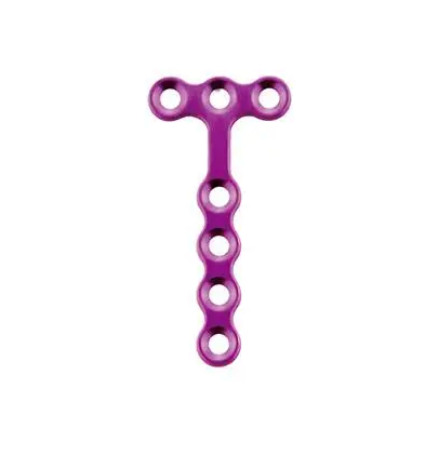

  • 7 holes – 24 mm

Features & Benefits

• Superior Biocompatibility: Made from German ZAPP pure titanium with consistent grain structure for excellent biocompatibility; does not interfere with MRI or CT imaging

• Soft Tissue Friendly: Smooth-edged design reduces soft tissue irritation

Compatible Screws

• φ1.5 mm self-drilling screw

• φ1.5 mm self-tapping screw

Required Instruments

• Cross-head screwdriver: SW0.5 × 2.8 × 95 mm (straight quick coupling handle)

• Medical drill bit: φ1.1 × 8.5 × 48 mm
