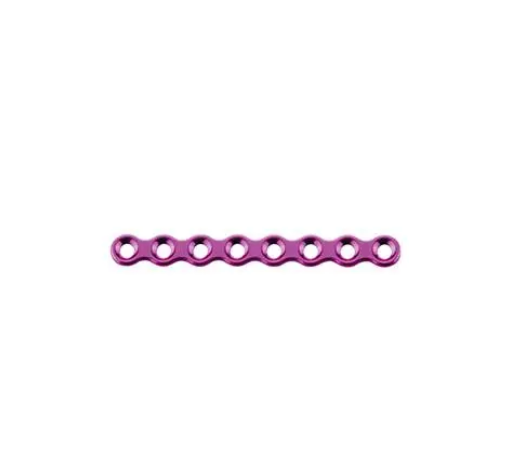

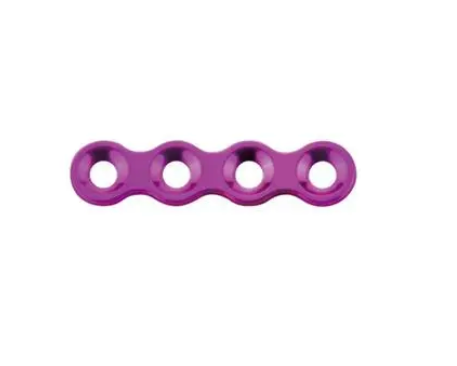

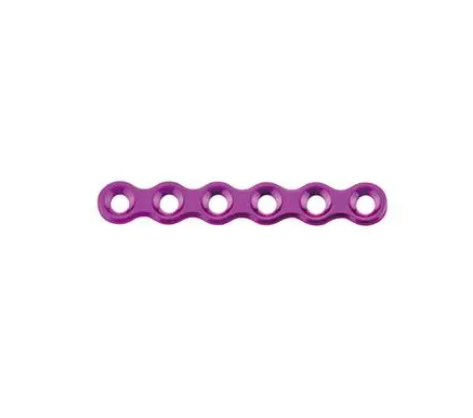

Maxillofacial Trauma Micro Straight Plate
Applications: Frontal portion, nasal portion, pars orbitalis, pars zygomatica, maxilla area, juvenile craniofacial bone. Designed for maxillofacial trauma fracture surgical therapy.
Composition: medical-grade titanium
Measurement of thickness: 0.6 mm
Product specification
|
Item No. |
Specification |
|
|
10.01.01.04011015 |
4 holes |
16mm |
|
10.01.01.06011000 |
6 holes |
24mm |
|
10.01.01.08011000 |
8 holes |
32mm |
|
10.01.01.10011000 |
10 holes |
40mm |
|
10.01.01.12011000 |
12 holes |
48mm |
|
10.01.01.14011000 |
14 holes |
56mm |
Features & Benefits:
• Anodizing technique is used on the surface of bone plates to improve their hardness and resistance to abrasion.
• The concave plate hole reduces soft tissue irritation by allowing the plate and screw to merge more intimately with lower incisures.
Complementary screw:
Self-drilling screw with a φ1.5 mm
φ1.5mm screw with self-tapping
Complementing tool: a medical drill bit Cross head screwdriver: SW0.5*2.8*95mm straight quick coupling handle; φ1.1*8.5*48mm
• The concave plate hole reduces soft tissue irritation by allowing the plate and screw to merge more intimately with lower incisures.
Complementary screw:
Self-drilling screw with a φ1.5 mm
φ1.5mm screw with self-tapping
Complementing tool: a medical drill bit Cross head screwdriver: SW0.5*2.8*95mm straight quick coupling handle; φ1.1*8.5*48mm
