Maxillofacial Trauma Micro ACR Plate
Maxillofacial Trauma Micro ACR Plate
Maxillofacial Trauma Micro ACR Plate

Maxillofacial Trauma Micro ACR Plate

Maxillofacial Trauma Micro ACR Plate

Application:
Designed for surgical treatment of maxillofacial trauma fractures in the maxilla region, nasal portion, pars orbitalis, pars zygomatica, frontal part, and pediatric craniofacial bones.

Material & Dimensions

  • Material: Medical-grade titanium (German ZAPP pure titanium)

  • Plate Thickness: 0.6 mm

  • Available Configurations:

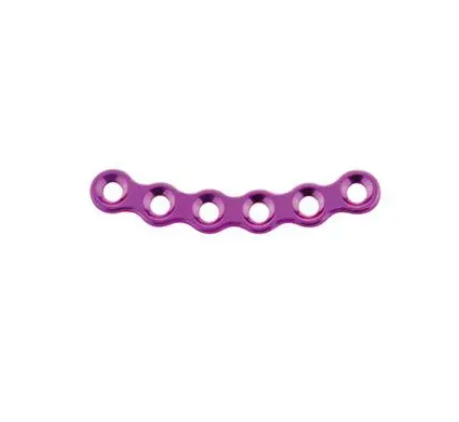

    • 6 holes – 23 mm

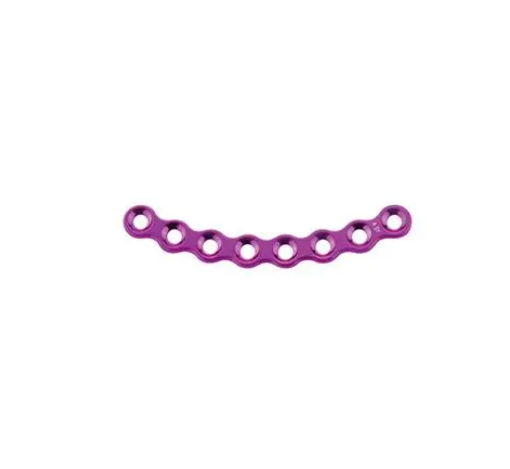

    • 8 holes – 30 mm

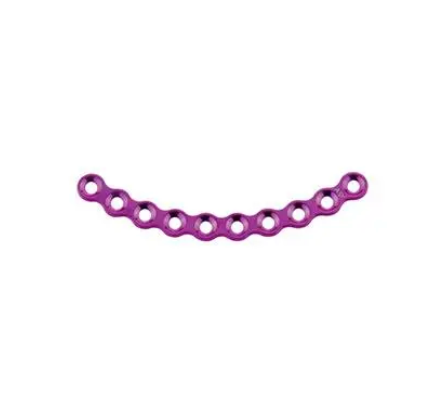

    • 10 holes – 37 mm

    • 12 holes – 43 mm

Features & Benefits

  • MRI/CT Compatibility: Non-interfering with imaging modalities

  • High Biocompatibility: Superior grain size distribution for optimized osseointegration

  • Soft Tissue Friendly: Concave plate holes allow intimate contact between plate and screw to minimize irritation

Compatible Screws

  • φ1.5 mm self-drilling screw

  • φ1.5 mm self-tapping screw

Required Instruments

  • Cross-head screwdriver: SW0.5 × 2.8 × 95 mm (straight quick coupling handle)

  • Medical drill bit: φ1.1 × 8.5 × 48 mm

micro-plate-sketch-map
