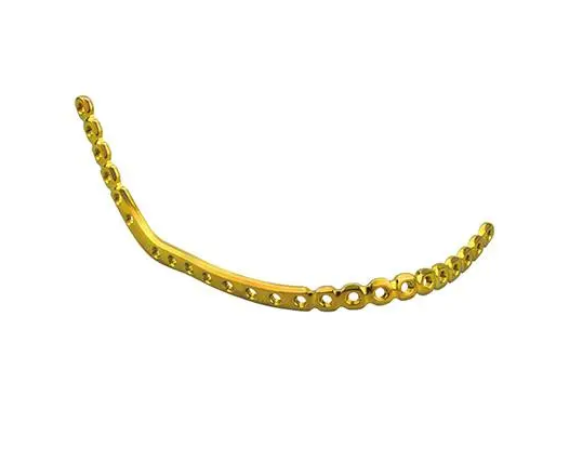

Locking Reconstruction Anatomical 120° Plate

Locking Reconstruction Anatomical 120° Plate (One Hole Select Two Kinds Of Screw)

Composition: Medical-grade titanium
Thickness: 2.4 mm

Product Sizes:

• Small (S): 12 holes, 132mm length, available left and right

• Medium (M): 13 holes, 138mm length, available left and right

• Large (L): 14 holes, 142mm length, available left and right

Application:

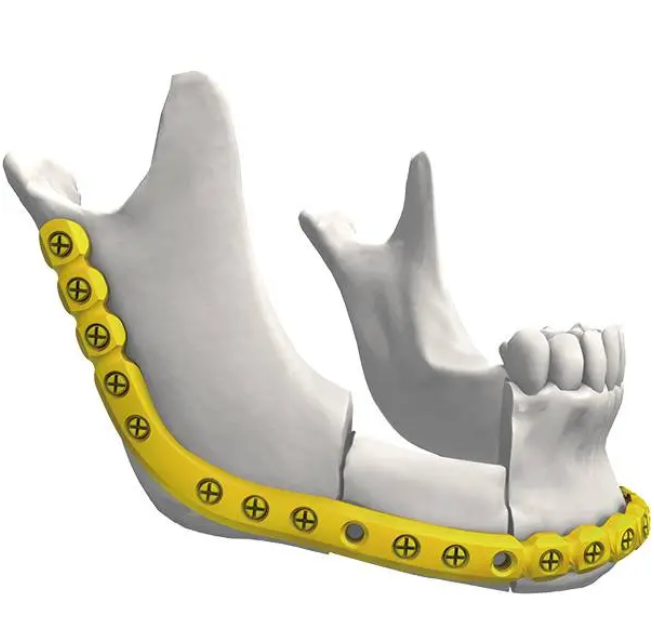

• Used for mandibular trauma cases including comminuted fractures, unstable fractures, infected nonunions, and bone defects.

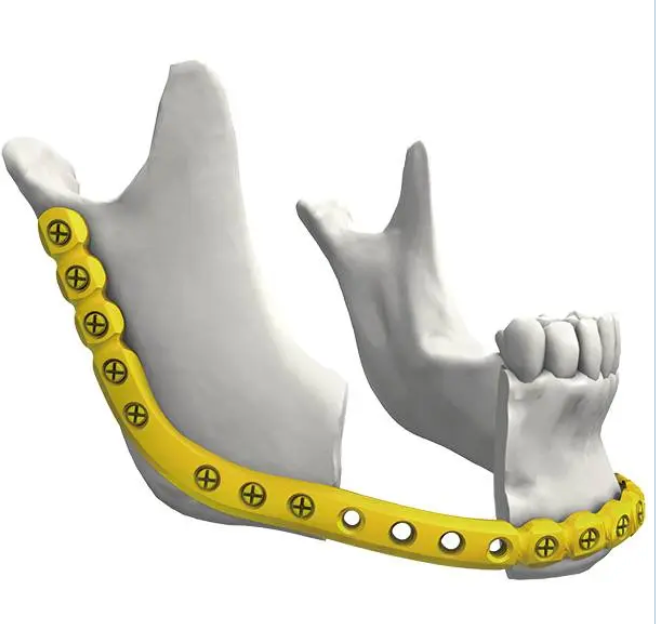

• Ideal for mandibular reconstruction in dissociated bone block defects or bone grafts for first or second reconstruction.

• If no bone graft is done initially, the reconstruction plate can only provide limited support and a second graft operation will be necessary.

Advantages & Features:

• Specially designed pitch-row improves fatigue strength and reduces stress concentration during use.

• Unique design allows one hole to accept two types of screws (locking and non-locking), enabling both fixed-angle and compression fixation.

• Locking screws stabilize bone blocks and firmly lock the plate like external fixation, while non-locking screws allow angle and compression fixation.

Matching Screws:

• 2.4 mm self-tapping screw

• 2.4 mm tightening screw

Tools:

• Cross head screwdriver (SW0.52.895mm straight quick coupling handle)

• Medical drill bit (φ1.95782mm)
