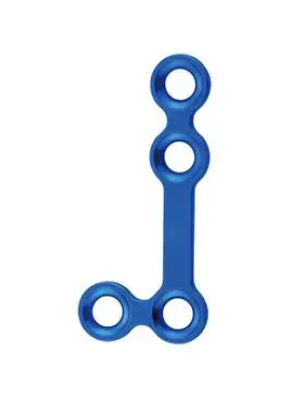

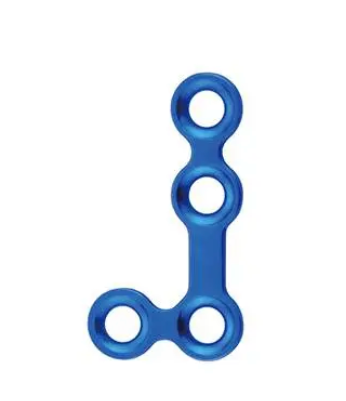

Locking Maxillofacial Mini 90° L Plate
Locking Maxillofacial Mini 90° L Plate
Application:
This plate is designed for surgical treatment of maxillofacial trauma fractures, especially suited for:
-
Mandible (simple and stable fractures)
-
Maxilla region
-
Pars orbitalis
-
Pars zygomatica
Its 90° L shape provides strong and stable fixation in anatomically challenging areas.
Material & Dimensions
-
Material: German ZAPP medical-grade pure titanium with consistent grain size and superior biocompatibility
-
Thickness: 1.0 mm
-
Available Sizes:
| Number of Holes | Length (mm) |
|---|---|
| 4 holes | 20 |
| 4 holes | 24 |
Features & Benefits
-
Reversible Usage: Plate can be applied in either orientation for flexible surgical needs
-
Dual Screw Compatibility: Each hole accepts both locking and non-locking screws, enhancing versatility and clinical applicability
-
High-Quality Material: Manufactured from German ZAPP titanium, providing superior biocompatibility and consistent grain structure
-
Imaging Compatibility: Does not interfere with MRI or CT scans
-
Surface Treatment: Anodized finish increases hardness and abrasion resistance, extending the product’s durability
Compatible Screws
-
Φ2.0 mm self-tapping and self-drilling screws
-
Φ2.0 mm fastening bolts
Complementary Tools
-
Medical drill bit: φ1.6 × 12 × 48 mm
-
Cross-head screwdriver: SW0.5 × 2.8 × 95 mm straight quick coupling handle
