Locking Maxillofacial Mini 120° Arc Plate
Locking Maxillofacial Mini 120° Arc Plate
Application:
Designed for surgical treatment of maxillofacial trauma fractures requiring curved fixation, particularly in delicate regions of the craniofacial structure.
Material & Dimensions
-
Material: Medical-grade titanium
-
Thickness: 1.0 mm
-
Available Sizes:
| Number of Holes | Length (mm) |
|---|---|

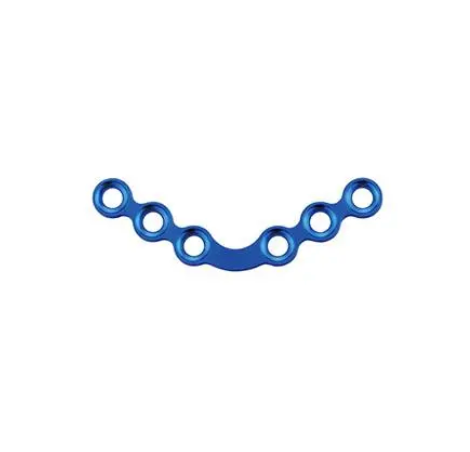

| 6 holes | 32 |

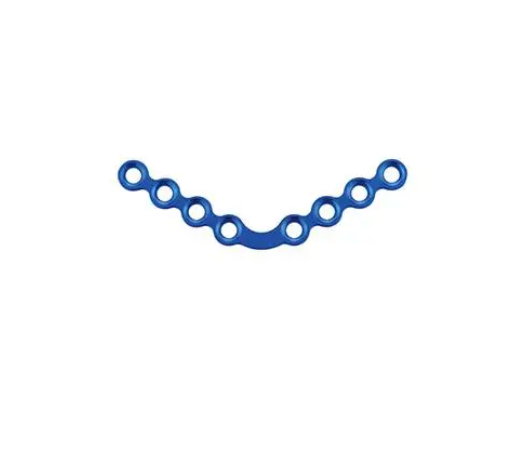

| 8 holes | 41 |
Features & Benefits
-
Reversible Design: Can be applied in either orientation for flexible surgical application
-
Dual Screw Compatibility: Each hole supports both locking and non-locking screws, enhancing clinical adaptability
-
Soft Tissue Friendly:
-
Concave plate holes reduce irritation by promoting a closer fit between plate and screws
-
Smooth edges minimize stimulation of surrounding soft tissue
-
Compatible Screws
-
Φ2.0 mm self-drilling screws
-
Φ2.0 mm self-tapping screws
-
Φ2.0 mm fastening bolts
Complementary Tools
-
Medical drill bit: φ1.6 × 12 × 48 mm
-
Cross-head screwdriver: SW0.5 × 2.8 × 95 mm straight quick coupling handle
