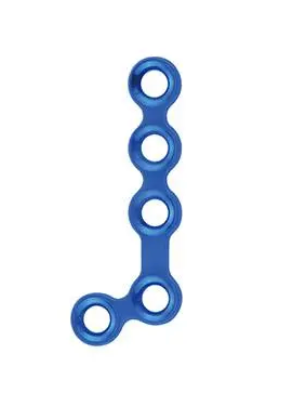

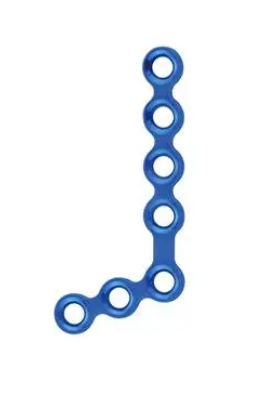

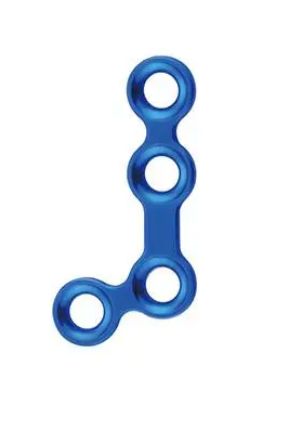

Locking Maxillofacial Mini 110° L Plate
Locking Maxillofacial Mini 110° L Plate
Application:
Designed for surgical treatment of maxillofacial trauma fractures, particularly effective for:
-
Mandible (simple and stable fractures)
-
Maxilla region
-
Pars orbitalis
-
Pars zygomatica
Its 110° L-shaped design offers secure fixation tailored for these anatomically complex areas.
Material & Dimensions
-
Material: German ZAPP medical-grade pure titanium, known for consistent grain size and superior biocompatibility
-
Thickness: 1.0 mm
-
Available Sizes:
| Number of Holes | Length (mm) |
|---|---|
| 4 holes | 19 |
| 5 holes | 25 |
| 7 holes | 31 |
Features & Benefits
-
Reversible Usage: Can be positioned either way for maximum surgical flexibility
-
Dual Screw Compatibility: Each hole supports both locking and non-locking screws, enhancing versatility and clinical outcomes
-
Premium Material: Manufactured from German ZAPP titanium, ensuring excellent biocompatibility and minimal imaging interference
-
Soft Tissue Friendly: Smooth edges reduce irritation and improve patient comfort
Compatible Screws
-
Φ2.0 mm self-drilling screws
-
Φ2.0 mm self-tapping screws
-
Φ2.0 mm locking screws
Matching Instruments
-
Cross-head screwdriver (SW0.5 × 2.8 × 95 mm straight quick coupling handle)
-
Medical drill bit (φ1.6 × 12 × 48 mm)
