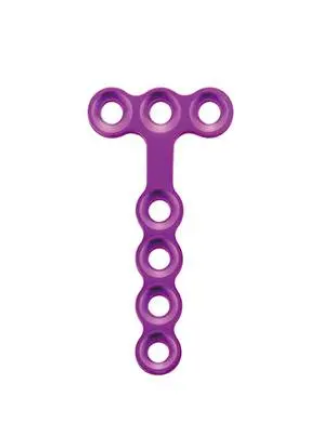

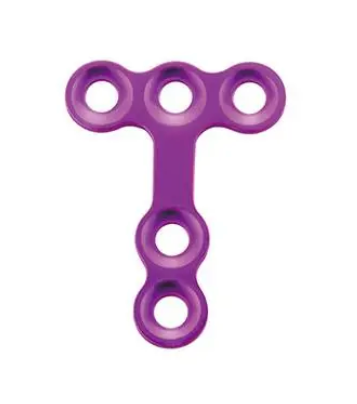

Locking Maxillofacial Micro T Plate

Locking Maxillofacial Micro T Plate

Application:
Specifically designed for surgical repair of maxillofacial trauma fractures in the:

• Frontal bone

• Nasal bone

• Pars orbitalis

• Pars zygomatica

• Maxilla

• Juvenile craniofacial bones

Its T-shaped design allows precise fixation in anatomically challenging regions.

Material & Dimensions

• Material: Medical-grade titanium

• Thickness: 0.6 mm

• Available Sizes:

Features & Benefits

• Reversible Design: Can be used in either orientation for surgical flexibility

• Locking Mechanism: Utilizes squeeze locking technology to securely fasten screws

• Dual Screw Compatibility: Each hole accommodates both locking and non-locking screws, enhancing versatility

• Soft Tissue Protection:

  • Concave plate holes reduce irritation by enabling a closer plate-screw fit

  • Smooth plate edges minimize soft tissue stimulation

• Color-Coded Series: Different anodized colors for easy identification and streamlined clinical handling

Compatible Screws

• Φ1.5 mm self-drilling screws

• Φ1.5 mm self-tapping screws

• Φ1.5 mm locking screws

Matching Instruments

• Medical drill bit: φ1.1 × 8.5 × 48 mm

• Cross-head screwdriver: SW0.5 × 2.8 × 95 mm with straight quick coupling handle
