Φ11.0 Series External Fixation Fixator – Ankle Bridge Frame

Φ11.0 Series External Fixation Fixator – Ankle Bridge Frame

Φ11.0 Series External Fixation Fixator – Ankle Bridge Frame

The ankle bridge frame is a versatile combination within the Φ11.0 external fixation system, designed to accommodate various fracture treatments. It serves as a flexible guide tailored to specific fracture needs.

Key Features:

  • Easy to assemble and highly adaptable, creating a stable, three-dimensional external fixation.

  • Modular design allows components to be added during treatment based on patient needs.

  • Lightweight construction thanks to aluminum clamps.

  • Elastic carbon fiber rods reduce stress concentration for enhanced durability.

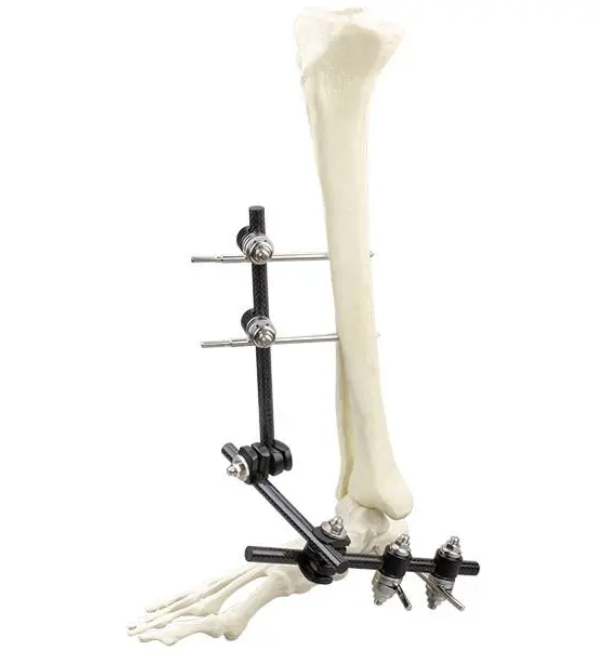

Frame Setup Overview:

  • Two 5 mm bone screws inserted into the calcaneus.

  • Two 6 mm bone screws placed in the distal tibia shaft.

  • Bone pins connected by two Φ11 200 mm straight rods and four pin-to-rod couplings.

  • Frame completed with two rod-to-rod couplings and one Φ11 250 mm straight rod, then securely locked.

This system offers surgeons flexibility and stability for effective ankle fracture management.

Recommended configurations:
