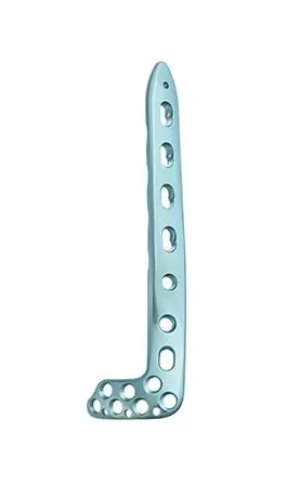

Distal Lateral Tibia L-Shaped Locking Plate
Features:
1. Shaft holes accommodate 3.5mm cortical screws, 4.0 cancellous screws, and 4.0 locking screws.
2. The low profile shape lessens the irritability of delicate tissues;
3. The anodised surface;
4. Designing anatomical shapes;
5. Combi-hole offers the option of both cortical and locking screws;
Trauma plate for the distal lateral tibia is the indication. L-shaped locking plates work well for fractures of the distal lateral tibia.
Fits the 4.0 series orthopedic instrument set. Used for Φ4.0 locking screw, Φ3.5 cortical screw, and Φ4.0 cancellous screw.
|
Order code |
Specification |
|
|
10.14.33.05103000 |
Left 5 Holes |
103mm |
|
10.14.33.05203000 |
Right 5 Holes |
103mm |
|
*10.14.33.07103000 |
Left 7 Holes |
135mm |
|
10.14.33.07203000 |
Right 7 Holes |
135mm |
|
10.14.33.09103000 |
Left 9 Holes |
167mm |
|
10.14.33.09203000 |
Right 9 Holes |
167mm |
|
10.14.33.11103000 |
Left 11 Holes |
199mm |
|
10.14.33.11203000 |
Right 11 Holes |
199mm |
|
10.14.33.13103000 |
Left 13 Holes |
231mm |
|
10.14.33.13203000 |
Right 13 Holes |
231mm |
