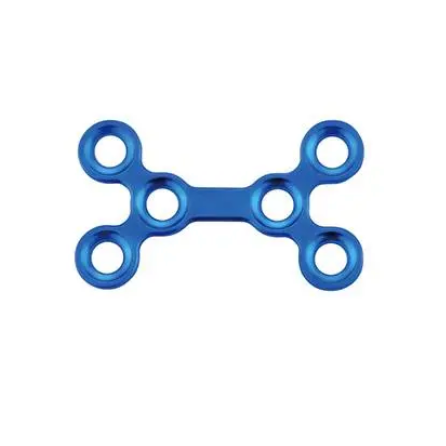

Locking Maxillofacial Mini Double Y Plate
Application: Designed for maxillofacial trauma fracture surgical treatment; used for mandible (simple and stable trauma), maxilla region, pars orbitalis, and pars zygomatica.
Composition: medical-grade titanium
Measurement of thickness: 1.0 mm
Product specification
|
Item No. |
Specification |
|
|
10.01.04.06021000 |
6 holes |
23mm |
Features & Benefits:
• Reversible usage of the locking maxillofacial micro and mini plate
• One hole selects two types of screws: locking and non-locking, all of which are accessible to maximize the likelihood of plates and screws aligning freely and to satisfy the need for more comprehensive and superior clinical indications.
• The concave plate hole reduces irritation from soft tissues by allowing the plate and screw to merge more intimately with lower incisures.
• The smooth edge of the bone plate lessens stimulation of the soft tissue.
Complementary screw:
Screw with self-drilling Ά2.0 mm
Self-tapping screw φ2.0mm
φ2.0mm fastening bolt
Complementing tool: a medical drill bit Cross head screwdriver: SW0.5*2.8*95mm straight quick coupling handle; φ1.6*12*48 mm
• One hole selects two types of screws: locking and non-locking, all of which are accessible to maximize the likelihood of plates and screws aligning freely and to satisfy the need for more comprehensive and superior clinical indications.
• The concave plate hole reduces irritation from soft tissues by allowing the plate and screw to merge more intimately with lower incisures.
• The smooth edge of the bone plate lessens stimulation of the soft tissue.
Complementary screw:
Screw with self-drilling Ά2.0 mm
Self-tapping screw φ2.0mm
φ2.0mm fastening bolt
Complementing tool: a medical drill bit Cross head screwdriver: SW0.5*2.8*95mm straight quick coupling handle; φ1.6*12*48 mm
