Steerable PV Mapping Catheter

Steerable PV Mapping Catheter

Designed for maximum performance in atrial fibrillation (AF) procedures, the Steerable PV Mapping Catheter combines precision, durability, and flexibility to deliver dependable mapping results. Its multi-durometer and variable-diameter construction enhance maneuverability while maintaining stability throughout the procedure.

Key Features

• Optimized for precise pulmonary vein (PV) mapping.

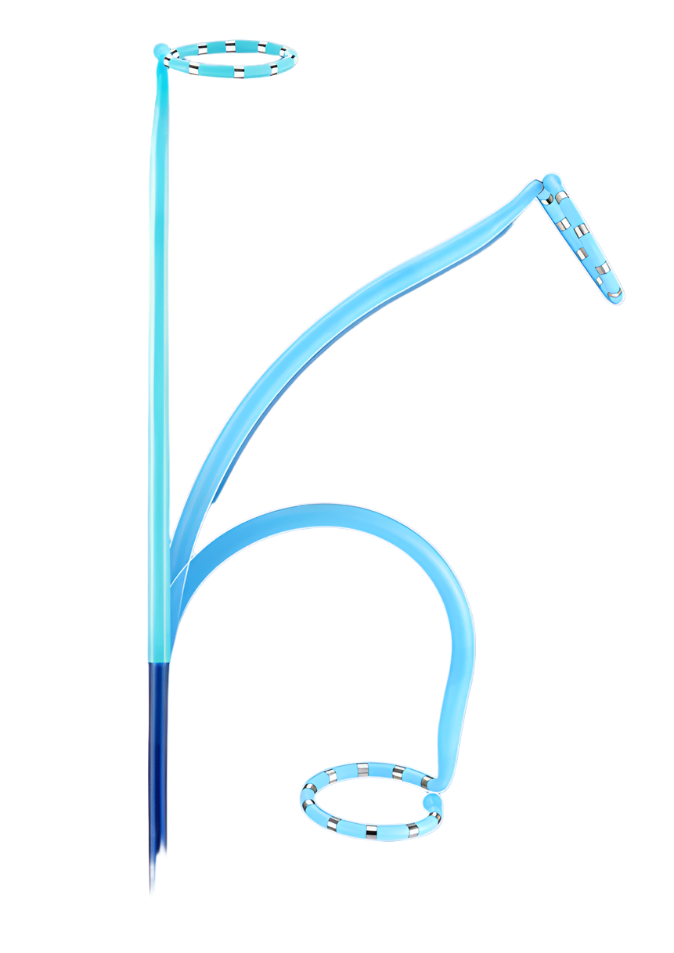

• Up to 270° deflection for improved right pulmonary vein (RPV) access.

• Excellent kink resistance and support during extended procedures.

• Braided shaft design for durability and torque control.

• Memory alloy for superior shape recovery and consistent tissue contact.

• Five fixed loop sizes to match varying left atrial diameters.

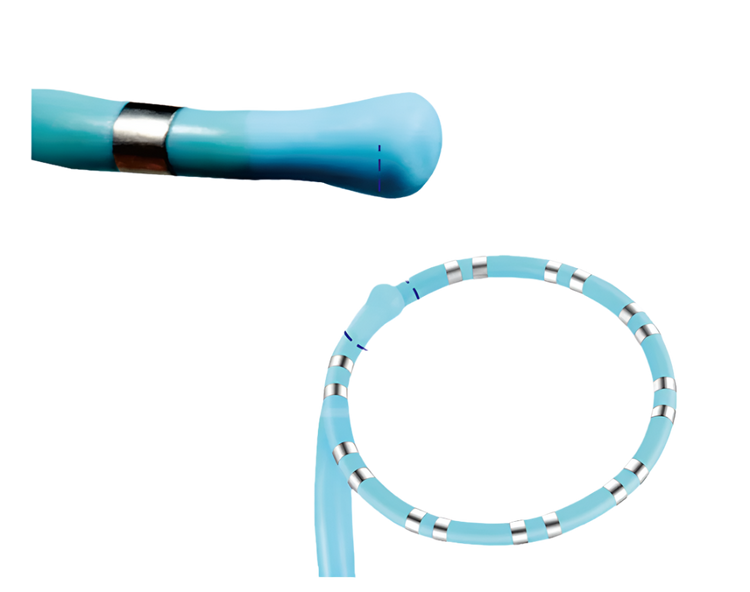

• Unique bulb tip minimizes myocardial irritation.

Specifications

• French size: 7F

• Lengths: 110 cm

• Loop sizes: PV12, PV15, PV18, PV21, PV24

• Electrode configurations:

  • Decapolar (10 electrodes) — Spacing options: 3-3-3, 4-4-4, 5-5-5, 6-6-6, 7-7-7 mm

  • Duo-Decapolar (20 electrodes) — Spacing options: 1-2-1, 1-3-1, 1-4-1, 1-5-1, 1-6-1 mm
